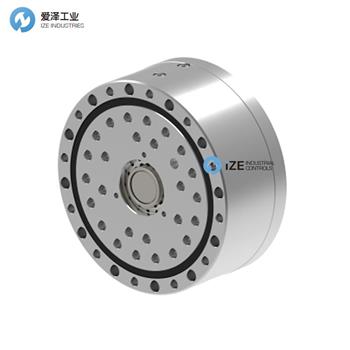

SPINEA減速機TS200-125技術參數
Size | TS 200 |
Reduction ratio | 125 i |
Rated output torque | 890 TR [Nm] |
Acceleration and braking torque | 2225 Tmax [Nm] |
Permissible torque at emergency stop | 4450 Tem [Nm] |
Rated input speed | 2000 nR [rpm] |
Cycle effective speed | 2000 nef[rpm] |
Max. allowable input speed | 4000 nmax [rpm] |
Tilting stiffness | 1070 Mt [Nm/arcmin] |
Torsional stiffness | 178 kt [Nm/arcmin] |
Max. no-load starting torque | 1,70 [Nm] |
Max. back driving torque | 200 [Nm] |
SPINEA減速機T系列介紹
T系列代表了廣泛的TwinSpin高精度減速機，帶有圓柱型外殼。這些齒輪包括精確的減速機構以及大容量的徑向和軸向圓柱滾子軸承。
減速器的這種設計允許將負載直接安裝在輸出法蘭或殼體上，而無需額外的軸承。T系列高精度減速機采用模塊化設計，可通過連接法蘭安裝所需類型的電機。
T系列包括未完全密封的齒輪。 必須使用入口法蘭和墊圈套件進行密封。根據客戶的要求，SPINEA可以根據客戶的電動機提供帶法蘭的完全密封的減速齒輪。
The T series represents a wide range of TwinSpin high precision reduction gears with a cylindrical shaped case. These gears comprise an accurate reduction mechanism and high-capacity radial and axial cylindrical roller bearings.
This design of reduction gears allows the mounting of the load directly on the output flange or the case, without the need of additional bearings. The T series high precision reduction gears are characterized by a modular design, which allows the mounting of your desirable type of motor by means of a connection flange.
The T series includes gears that are not completely sealed; an inlet flange and a gasket kit have to be used for the sealing. Upon the customer’s request, SPINEA is able to supply a completely sealed reduction gear with a flange according to the customer’s motor.
SPINEA減速機T系列其他常見型號：
SPINEA TS240-87-TC-P28
SPINEA TS300-63TC-P28
SPINEA TS240-153-TC-P28-M732
SPINEA TS240-121-TC-P24-0356
SPINEA TS140-115-E-P19
SPINEA TS140-115-TB-P19
SPINEA TS140-87-SAA-P19
SPINEA TS200-83-TC-M684
SPINEA TS200-63-TC-P24
SPINEA TS200-063-TC-P24-0293
SPINEA TS200-83-TC-P24
SPINEA TS200-125TC-P24
SPINEA GEARED MOTORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SPINEA減速機TS200-125TC-P24的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SPINEA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
SPINEA減速機TS200-125TC-P24產品參數
